Transfer Box
Performance in tough environments.
JCB Transfer Boxes
The JCB transfer box, available with mechanical and hydrostatic inputs, is a key element of the JCB Powertrain driveline, engineered to deliver reliable torque transfer and flexibility across a wide range of off-highway applications. Drawing on more than 40 years of experience in designing and manufacturing axles, transmissions and transfer boxes, JCB transfer boxes are built for durability and performance, and are optimised for quiet running in demanding environments, including construction, agricultural and industrial machinery. Developed as part of a fully integrated powertrain offering, they enable efficient power distribution within the drivetrain, supporting OEMs with proven, application-ready solutions that are designed to integrate seamlessly into a complete JCB Powertrain package.

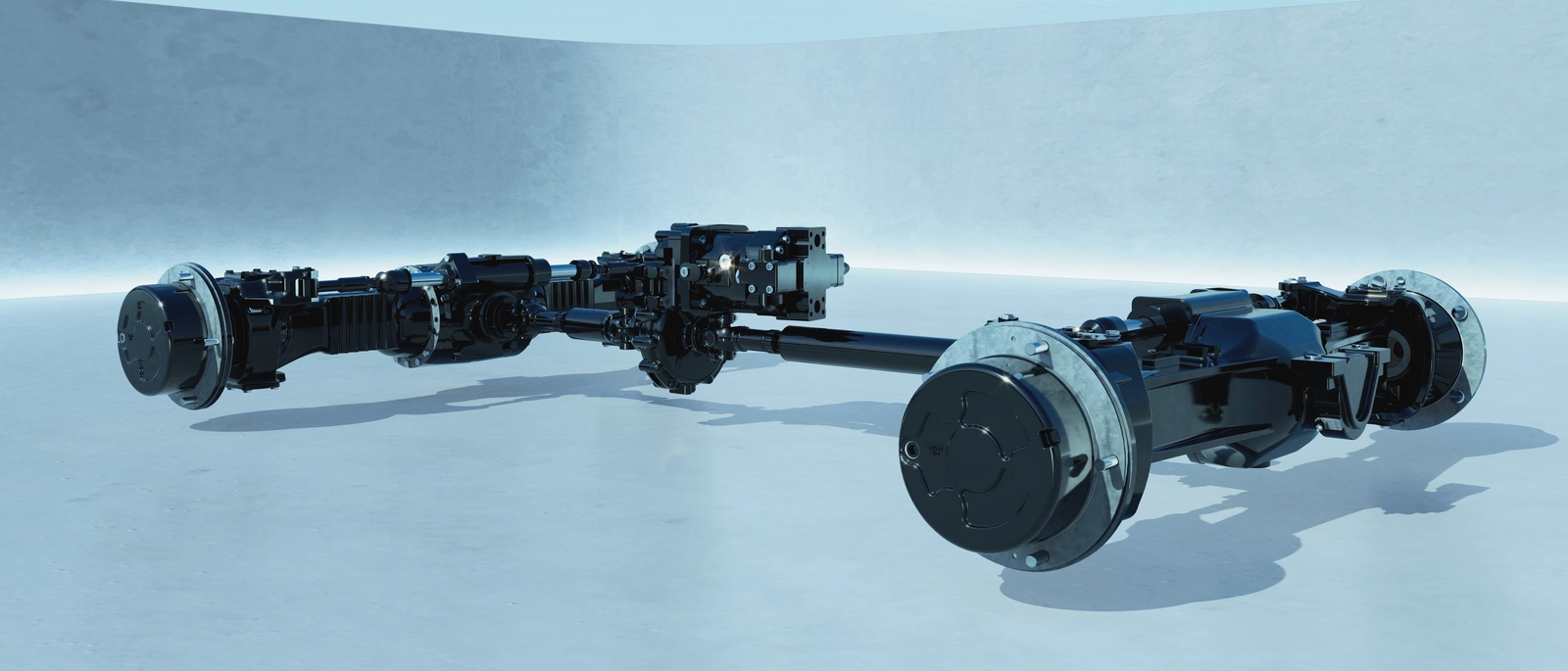

| TG300 | TG310 | TG375 | TG402 | TG172 | Wheel End Drop Box | |
|---|---|---|---|---|---|---|
| Nominal Rating kW (hp) | 74.5 (100) | 90 (121) | 112 (150) | 129 (173) | 97 (130) | 200 (300) |
| Maximum Input Speed (rpm) | 3,000 | 3,000 | 3,000 | 3,000 | 3,000 | 1,500 |
| Maximum Input Torque Nm (lb-ft) | 1,890 (1,394) | 2,150 (1,586) | 3,280 (2,419) | 4,495 (3,315) | 1,550 (1,143) | 2,070 (1,527) |
| Overall Ratio | 1:1 | 1:1 | 1:1 | 1:1 | 1.77:1 | 5.425:1 |
| Drop: Input-Output (mm) | 300 | 300 | 375 | 405 | 172 | 475 |
Why JCB Powertrain for OEM?
JCB Powertrain provides a supply of all the components required for a complete OEM drivetrain solution, including the engine, axles, transmission, and integrated drivelines.
JCB’s complete powertrain system packages:
- A bespoke package for each application, offering a complete solution.
- Fully integrated powertrain system providing serious efficiency.
- Leverages JCB’s extensive experience in off-highway machines and proven technology.
- Robust, heavy-duty components proven in JCB machines.
- Full Engineering support from concept through installation for the entire package.
- One point of contact for all integration support, engineering knowledge and servicing requirements.
