Mini Excavators Operation Guide
With intuitive design and ergonomic controls, let’s look at how to operate a compact excavator.
What are mini excavators commonly used for?
Mini excavators are compact, versatile machines that are built to give you control and precision in tight spaces. Most models can fit through standard doorways or narrow alleyways – making them an ideal choice for digging trenches, foundations and holes as well as landscaping and even light demolition.
The full range of mini excavator applications include:
- Trenching and utility work
- Landscaping and groundwork
- Demolition and renovation
- Site preparation and excavation
- Agricultural tasks
- Road and municipal maintenance
Need help finding the right mini excavator for your job? Read our blog here for some helpful tips.
Where can a mini digger be operated?
Where a mini excavator can be operated is often dependent on its size. At JCB, our mini diggers range from 1-5T all the way through to 10T – so you can find the right mini excavator for your specific site.
1-2T mini excavators are typically used on smaller builds for landscaping, fencing and municipalities – and usually can fit through a standard doorway. Used for groundwork and landscaping, 2.5T diggers are slightly bigger and offer more engine power. 3.5T excavators have similar engine capabilities to 2.5T diggers, but can tackle bigger jobs such as demolition, waste, forestry, housebuilding, utilities, and roads with increased tearout performance.
If you need more power but still want to take on roadworks, landscaping and forestry, 5-6T excavators are the ideal choice. For larger construction sites, 8-10T diggers offer the biggest size and the most powerful machine.

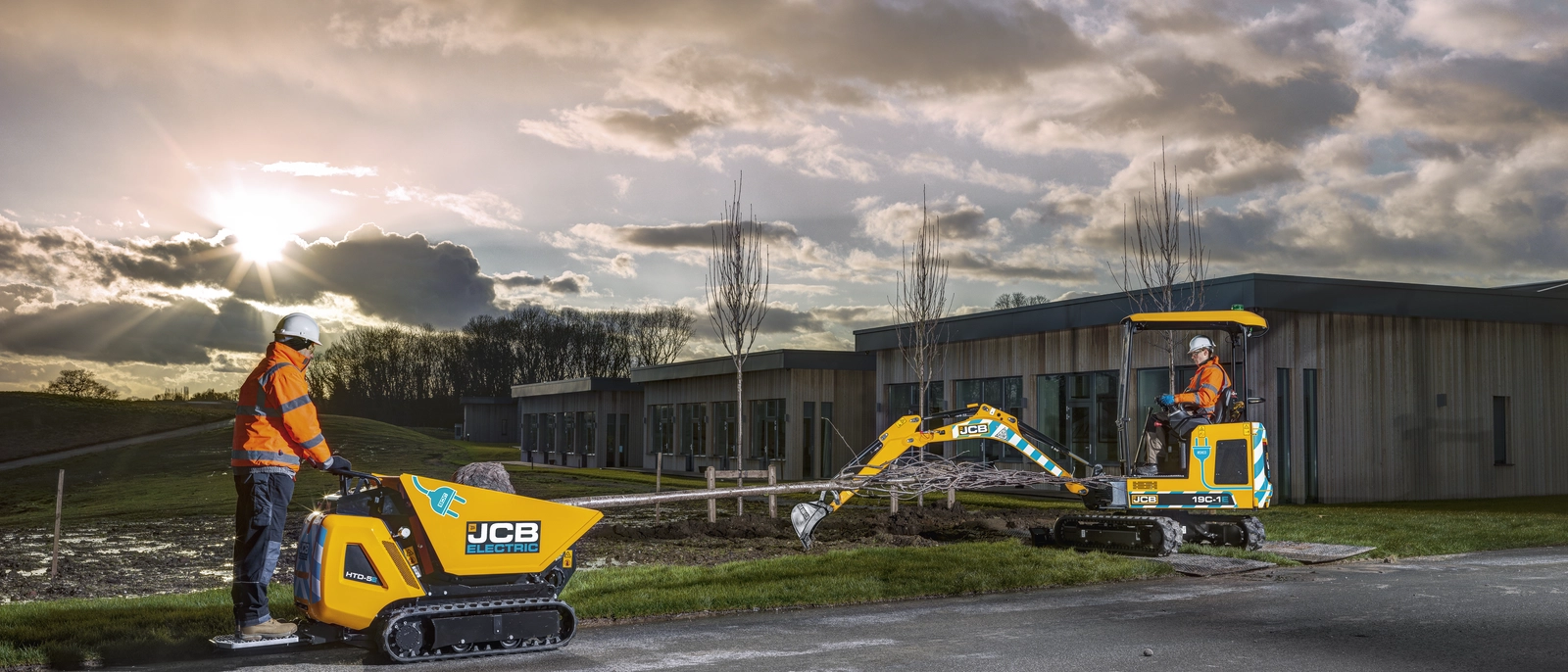

An electric mini excavator, like the 19C-1E, can be used indoors, underground or in sensitive-enclosed environments – without the need for restrictions or costly extraction equipment. Electric machines are also quieter than their diesel counterparts, allowing for ‘out-of-hours’ working.
Before you operate a mini digger, it is advised to do some training to learn how to drive a mini excavator. Formal training can include getting your CSCS card.
1-2 tonne mini excavator guide
The 1-2 tonne mini excavator range is designed for comfort, durability and ease-of-use. Models like the 16C-1 are compact yet powerful, giving you a lightweight machine with excellent manoeuvrability.
What pre-operation checks are needed?
You need to complete the following engine checks before starting the machine:
- Oil level
- Air filter and air filter dust valve
- Coolant quality and level
- Fuel sedimenter
- Fan belt condition and tension
- Cooling pack
- Exhaust smoke
- Fuel system for leaks or contamination
For hydraulics, check:
- Oil level
- Rams chrome condition
- Operation of all services such as excavator, dozer etc
- Hoses and pipework for damage or leaks
Check the following electrics:
- All electrical equipment operation, e.g. warning lights, beacon, alarms, horns, wipers etc
- Wiring for chaffing and routing
- Battery terminals for condition and tightness
- Hourmeter
And finally, complete the following undercarriage, bodywork and cab checks:
- Track plate condition and bolt torque
- Track tension
- Track and running gear
- All pivot pins retaining bolts security
- Visual inspection of structure for damage, including welds around lifting points and excavator end main pivots
- Slew ring bearing
- Door/window hinges
- Windscreen washer fluid level
- General machine condition
How to operate a compact excavator
The key to operating your mini digger effectively is understanding the basic controls. JCB machines have ergonomic controls that are intuitive to operators – but for a detailed breakdown, head to our quick start guide here.
Operation tips across different environments
Difficult terrains mean you need to be adaptable with your mini digger. Understanding its limitations and employing strategies for handling uneven terrain or confined spaces is key for getting the most out of your machine.
1-2T mini excavators have retractable tracks, meaning they can be adjusted to narrow the machine’s width - so you can easily access tight spaces, such as narrow corridors or garden gates. When these tracks are expanded, they provide enhanced stability and lifting capacity, so you get the best of both worlds. Learning how to extend the tracks is key to using your 1-2T mini digger – check out our handy YouTube video for a breakdown.
2.5 tonne mini excavator guide
The JCB 2.5 tonne mini excavator range is engineered with durability, reliability and towability in mind. Models such as the 25Z-1 are built with a Stage V engine to give you even more power in confined spaces – all with the premium quality, reliability and performance you’d expect from JCB.
What pre-operation checks are needed?
Pre-start checks include:
- General machine walk-around
- Lubricate the slew ring remote
- Clean the HVAC heater filter
- Check window washer fluid level
- Check oil level and fuel level
- Drain the fuel filter
- Check the coolant level and cooling pack
- Check hydraulic oil level
- Check track tension
For your functional tests and final inspection, follow this list:
- Check the exhaust smoke
- Check the engine fuel system for leaks or contamination
- Check fuel system
- Check all service operations e.g. excavator, dozer etc
- Check hoses and pipework
- Check all electrical equipment operation e.g. warning lights, beacon, alarms, horns, wipers etc
- Check Hourmeter
- Check track and running gear
How to operate a mini excavator
A thorough understanding of your mini digger’s basic controls is key to operating it effectively. JCB machines are intuitive – but for a detailed breakdown, head to our quick start guide here.
Operation tips across different environments
If you’re using a 2.5T mini digger for groundwork or landscaping, you should avoid using rotational force for operations like raking soil or inserting bucket teeth into the ground, as this may cause damage to the machine and attachments. You should also avoid digging by using traction force after inserting the bucket into the ground, as this can place excessive load on the rear of the machine and damage the track drive system.
If you are working on rough terrain avoid directly digging large rocks with your excavator. Instead break them with a hydraulic breaker before digging, as this protects the machine and improves efficiency.
3.5 tonne mini excavators guide
The JCB range of 3.5 tonne mini excavators are compact yet powerful machines, designed to bring you great precision – even in the tightest spaces. The 35Z-1 model is ideal for construction, utilities and landscaping with a roomy cab, enhanced safety features and user-friendly controls.
What pre-operation checks are needed?
Pre-start checks include:
- Lubricate the slew ring remote
- Check window washer fluid level
- Check oil level and fuel level
- Drain the fuel filter/water separator
- Check the coolant level
- Check hydraulic oil level
For your functional tests and final inspection, follow this list:
- Check the exhaust smoke
- Check the engine fuel system for leaks or contamination
- Check fuel system
- Check all service operations e.g. excavator, dozer etc
- Check hoses and pipework for damages or leaks
- Check all electrical equipment operation e.g. warning lights, beacon, alarms, horns, wipers etc
- Check Hourmeter
- Check track and running gear
How to operate a mini excavator
To operate your JCB mini digger effectively, it’s essential to have a solid understanding of its basic controls. Our machines are designed to be intuitive, but you can find a more detailed breakdown in our quick start guide here.
Operation tips across different environments
3.5T machines are great for light-duty sites, where you may need to level dirt or remove debris. However, because of their size, they may struggle with thick roots or hard clay. Be aware not to exceed the limits of your excavator to prevent tipping, or mechanical damage.
It’s also always best to work in sections no larger than the excavator can handle comfortably at full bucket extension - as overreaching the equipment’s capacity strains components and limits controllability.
5 -6 tonne midi excavators guide

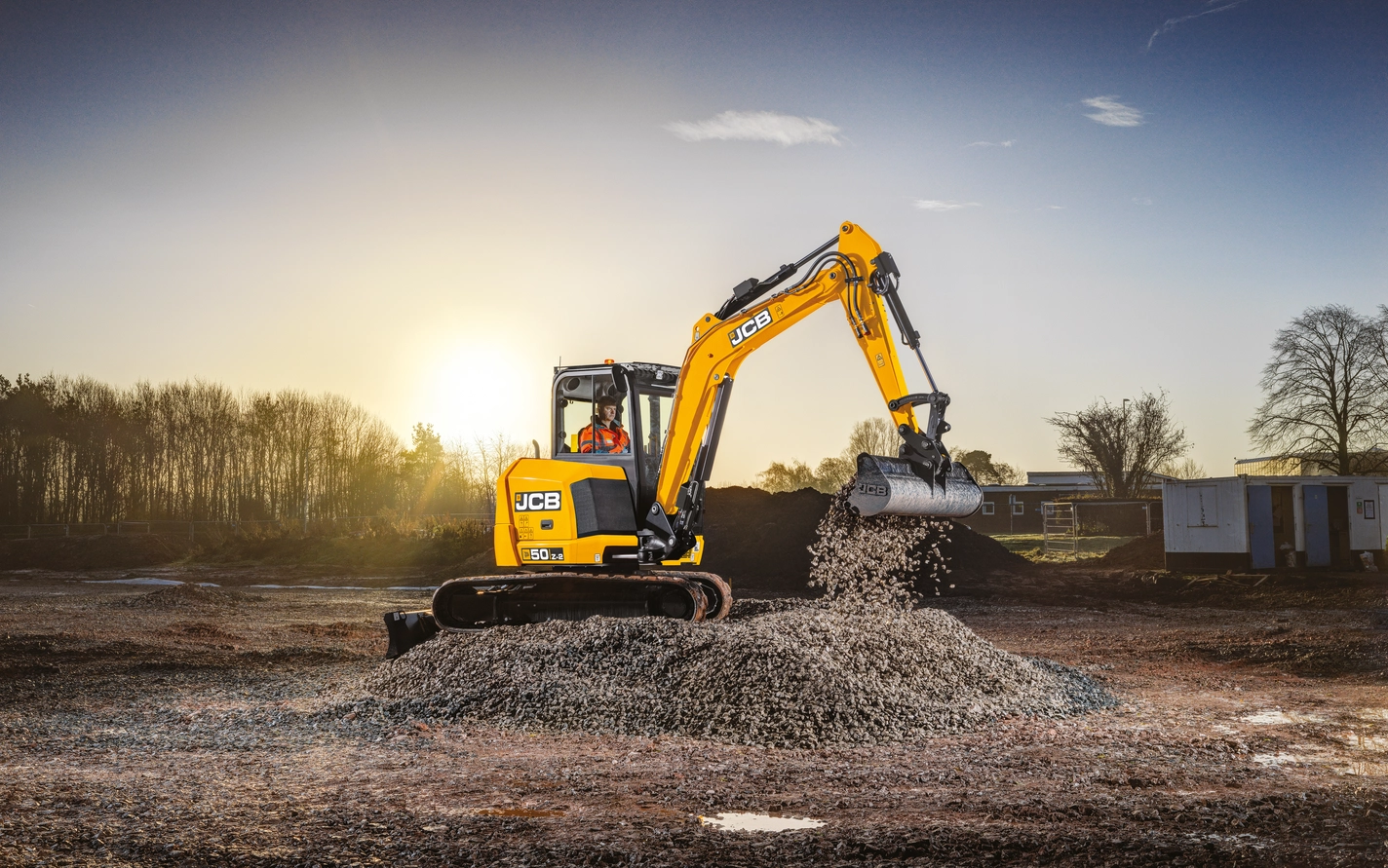

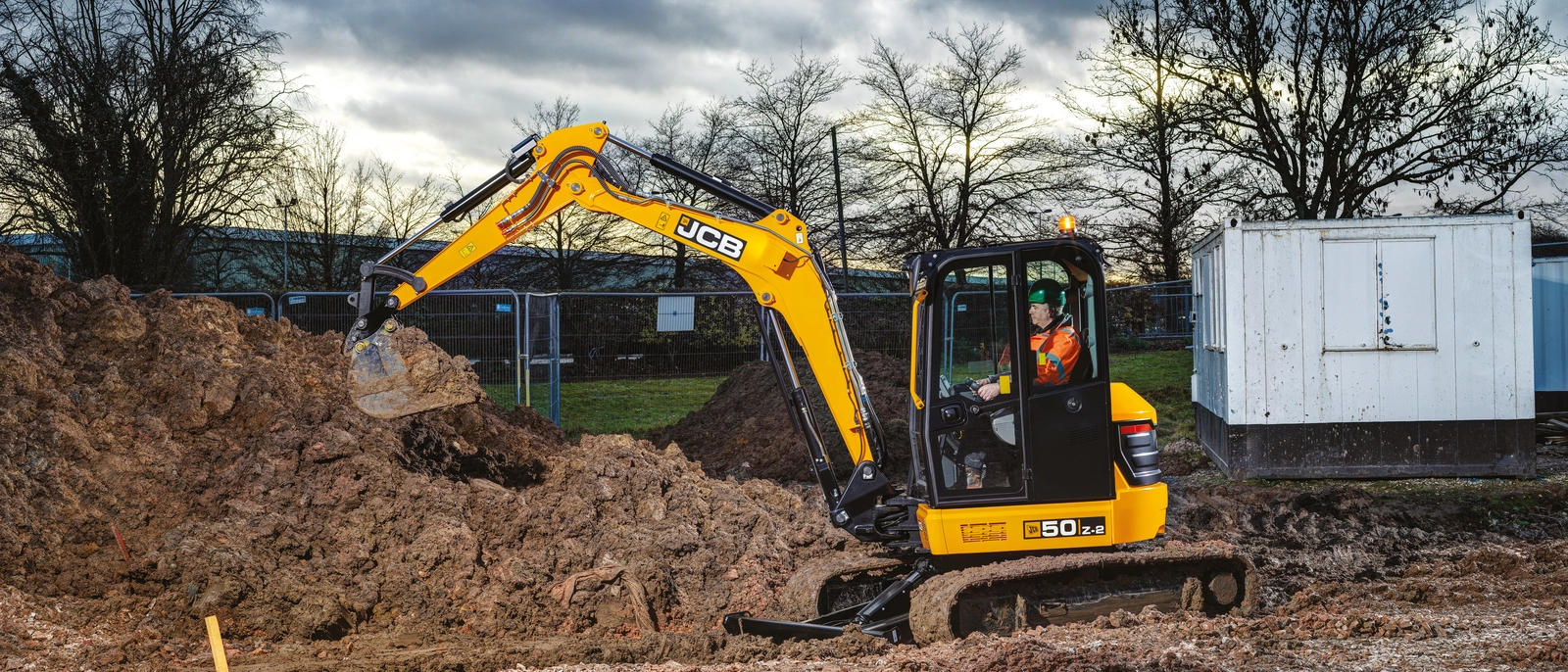

For bigger jobs, you need bigger machines. 5-6 tonne midi excavators are tough to beat for performance, safety, comfort and ease of use. The 50Z-2 model is a compact excavator with zero tailswing, made for easy and safe manoeuvrability wherever you need it.
What pre-operation checks are needed?
Before you get started, there’s a few checks you need to complete on your 5-6T midi excavator.
For the bodywork and operator station, check:
- Slew ring remote greasing
- Cab HVAC (Heating Ventilation Air Conditioning) intake filter
- Cab HVAC recirculation filter
Check the following electrics, engine fuel and cooling systems:
- Window washer fluid level
- Oil and fuel level
- Fuel filter and water separator
- Fuel system
- Coolant level and cooling pack
Also check the hydraulics, undercarriage and track:
- Oil level
- Hoses and pipework
- Services
- Track tension
How to operate a midi excavator
To get the most out of your JCB midi digger, it’s important to familiarise yourself with the key controls. Our machines are designed with ease of use in mind but, for a more in-depth overview, you can refer to our quick start guide here.
Operation tips across different environments
Control is important on uneven terrain, so if you’re using your 5-6T excavator for larger landscaping projects or forestry, this machine is designed to make operation as easy as possible, reducing the risk on track supports.
Across all job sites, stability is key. Position your machine on flat, level ground whenever possible and, when digging, align the boom straight with your tracks – this is the machine’s most stable configuration.
8 - 10 tonne midi excavator guide
8-10 tonne midi excavators are designed for long-lasting performance, power and comfort. The largest conventional tail swing model, the 100C-2, is built to deliver class-leading productivity, durability, efficiency and comfort – to get you through heavy-duty operations.
What pre-operation checks are needed?
Before you get started with the job at hand, you need to complete some pre-operation checks on your midi excavator.
Check the following on the bodywork and cab:
- Slew ring bearing lubrication
- Operator protective structure
- Seat belt condition and operation
- Fire extinguisher
For electrics, check:
- Instrument panel operation
- Wiring security and integration
- Battery and battery isolator operation
- Window washer fluid level
Across the engine, fuel and cooling system, check:
- Engine compartment hose condition and security
- Compressor drive belt condition and tension
- Air filter and air filter dust valve operation
- Fuel system
- Fuel filter and water separator
- Coolant level and cooling pack
Finally, check the following for your hydraulics, undercarriage and track:
- Hose and pipework security and leaks
- Oil level
- Rams security and condition
- Hoses and pipework
- Services
- Track condition
- Track tension
- Track plate security (for steel tracks only)
How to operate a midi excavator
Familiarising yourself with the key controls of your JCB midi digger is vital for safe and productive work. Although they are designed with intuitive controls, you can get an in-depth overview in our quick start guide here.
Operation tips across different environments
You’re likely to be working on larger construction sites with an 8-10T excavator, so knowing your machine’s safe angles is really important. When completing a downhill operation, travel straight down steep slopes without turning the tracks. Keep the bucket and load lowered, but off the ground while descending.
When you complete an uphill operation, drive straight up slopes without turning and ensure you use caution as the machine could tip backward if the tracks lose traction. For your safety, check the ground conditions first and avoid excessively wet or loose soil.
What attachments are available?
Mini and midi excavators come with a range of attachment options, including:
- GP bucket
- Ditch maintenance bucket
- Professional breakers
- Earth drills
- Selector grab
- Hydraulic quickhitch
With the electric model, the 19C-1E, you can also get a universal fast charger that can charge your machine in under 2-hours – ideal for demanding workload and quick turnaround times.
Do you need a licence to drive a mini digger?
In the UK, you do not need a formal licence to operate a mini digger on private land, or for DIY home projects. However, specific licencing requirements vary based on the type of project, equipment size, and local constituency regulations.
If you are operating on a commercial site or public highway, your operator will need a CPCS (Construction Plant Competence Scheme) card. This scheme provides skills cards for the plant sector within the construction and allied industries in the UK, and confirms an operator’s competence. Operators could also have an NPORS card, which means they are part of the National Plant Operators Registration Scheme.
No matter what job you need to do, the JCB range of mini and midi diggers offer maximum comfort, maximum efficiency and maximum safety. With a global reputation for engineering excellence, JCB’s high quality machines give your operator a combination of power and precision.
From compact 1-2T mini diggers to 10T high-performance machines, our comprehensive range makes it easy to find the best excavator for any project.
